Base bike

ComponentDetails

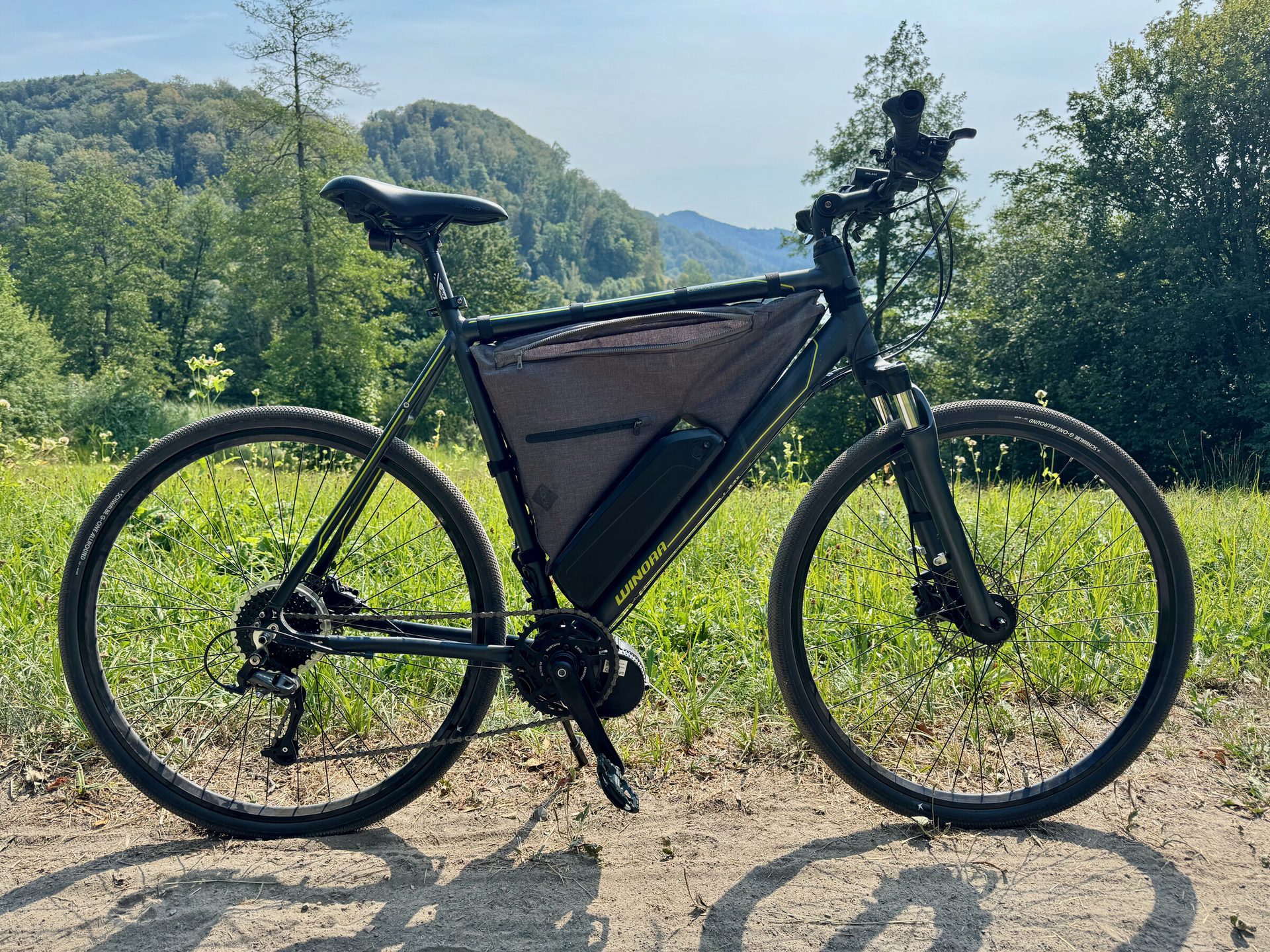

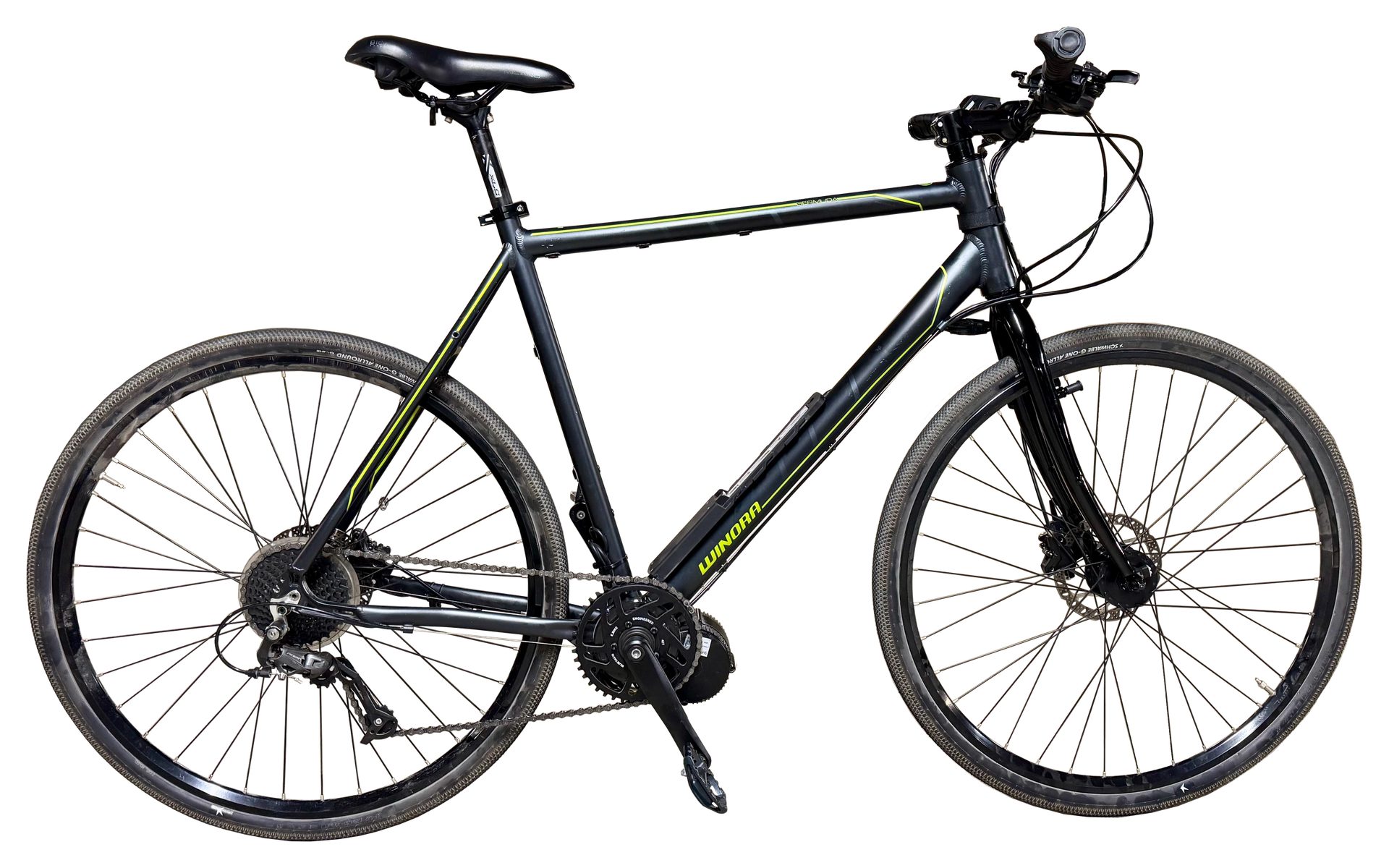

Frame2016 Winora Bermuda1, aluminium 6061, large (~60 cm)
Head tubeZS44/28.6 upper, ZS44/30 lower, semi-integrated, 34 mm bore counterbored to 44 mm at each end
Headset Ritchey Comp semi-integrated, 1-1/8", threadless
Fork Ridewill 093350, rigid Cr-Mo steel, 435 mm axle-to-crown, 45 mm offset, 1-1/8" threadless steerer, IS disc mount, 60 mm tyre clearance, QR
Bottom bracketThreaded shell, 68 mm width

Conversion kit

ComponentDetails
MotorBafang BBS02, 36V, mid-drive, 500W
Battery36V 15Ah Hailong “Mini” pack (≈540Wh), ~35 cm case, downtube mount
DisplayEggRider V2
Range~110 km, mixed assist levels

Drivetrain

ComponentDetails
Chainring Gustavo 42T, aluminium, for BBS01/BBS02/BBSHD
Crank arms Bafang 170 mm, for BBS01/BBS02/BBS-HD
Rear derailleurShimano Acera RD-M390, 9-speed
CassetteShimano CS-HG200-9, 11–32T
ChainShimano CN-HG53
ShifterShimano SL-M370, 9-speed
Pedals Shimano PD-EH500, SPD one side, flat the other

Wheels & tyres

ComponentDetails
RimsX-Pert X3 alloy, double-wall
Front hubShimano Alivio dynamo DH-T4050-1D (unused)
Rear hubShimano FH-RM33
AxlesQR, 100 mm front / 135 mm rear
Tyres Schwalbe G-One Allround 28×1.50 (40-622)
Tubes Schwalbe SV19 Presta, 40 mm valve
Mudguards SKS Chromoplastics

Brakes

ComponentDetails
CalipersShimano BR-M355 hydraulic disc, 160 mm rotors front and rear
Brake pads Shimano B05S-RX
Brake discsTektro 4A 160-8
Brake tubesShimano SM-BH59-JK
Rear adapterA_F180/R160 post-mount adapter
Front adapter Shimano IS-to-post-mount, 160 mm, listed for BR-M966 / M765 / M585. The new fork is IS, the caliper is post mount
LeversShimano BL-M355

Cockpit

ComponentDetails
HandlebarAlloy Ergoriser trekking riser bar, 630 mm wide
Stem Threadless, 110 mm, 20°, run rise-down (−20°) and slammed, no spacers
Seatpost27.2 mm alloy
SaddleSelle San Marco Milano
Mirror Arkham bar-end mirror, folding, 360° rotatable

Luggage

ComponentDetails
Frame bag DIY, made from an old Code 10 Backpack
Rack Standwell SW-CS 051, sprung clamp, up to 25 kg

Lighting

ComponentDetails
FrontROCKBROS RHL800, 800 lm, 5 modes, USB-C
RearROCKBROS Q3, brake-sensing, USB-C

Geometry

Winora Bermuda bicycle geometryA proportionally drawn side-view geometry diagram. Hover the dotted measurement marks for their values.700 × 40c tyres700 × 40c tyres700 × 40c tyres700 × 40c tyres170 mm crank armscrank 170 mmStack: 656 mmstack 656 mmReach: 439 mmreach 439 mmSeat tube angle: 76.2 degreesseat angle 76.2°Head tube angle: 72.2 degreeshead angle 72.2°Effective top tube: 611 mmeffective top tube 611 mmHead tube: 190 mmhead tube 190 mmChainstay: 450 mmchainstay 450 mmWheelbase: 1,123 mmwheelbase 1,123 mmBottom-bracket height: 276 mm; bottom-bracket drop: 75 mmBB height 276 mm; drop 75 mmTrail: 65 mm; fork offset: 45 mmtrail 65 mm; offset 45 mmhover dotted marks for measurements
MeasurementValue
Tyres700 × 40c
Wheelbase1,123 mm
Chainstay450 mm
Bottom-bracket height276 mm
Bottom-bracket drop75 mm
Stack656 mm
Reach439 mm
Effective top tube611 mm
Seat tube angle76.2°
Head tube angle72.2°
Head tube190 mm
Fork axle-to-crown435 mm
Fork offset45 mm
Trail65 mm
Crank arms170 mm
Stem110 mm, −20°
Spacers2 × 10 mm

changed by me goes on and off as I need it
